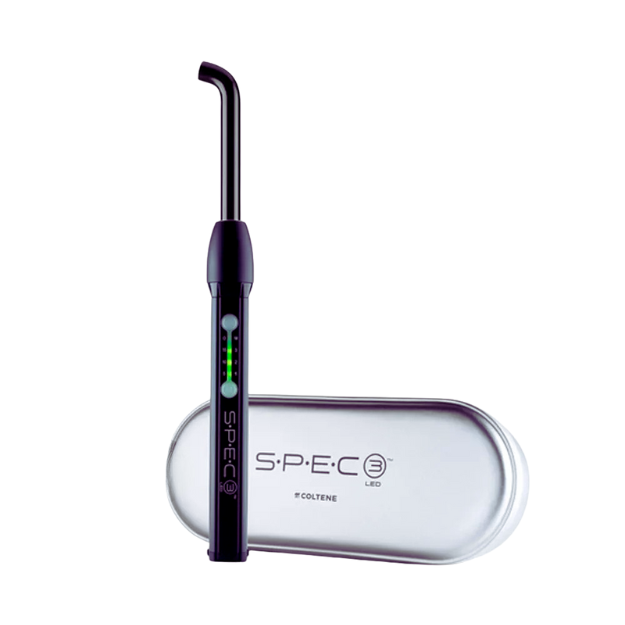

Coltene Spec 3 LED Curing Light

The Coltene Spec 3 LED Curing Light is an advanced dental equipment designed to expedite the
polymerization process of light-cured materials used in dental procedures. Crafted from industrial
grade aluminum, this device is built for durability and efficient heat dissipation, ensuring optimal
performance. Dental professionals can rely on this curing light to significantly reduce
polymerization time across a range of light-cured materials, resulting in excellent treatment
outcomes.
This versatile device offers multiple curing modes, including 3K Mode, Standard Mode, and Ortho
Mode, granting dental practitioners maximum functionality and flexibility in their procedures. The
product is specifically indicated for both intra- and extra-oral polymerization of light-cured dental
materials employing Camphorquinone (CQ) photoinitiators, with a wavelength output spanning
430 nm to 490 nm.
To maintain the device's integrity, users must adhere to certain obligations, including training and
compliance with relevant state or local regulations. The Spec 3 LED Curing Light also follows
European directive 2002/96/EC, making it eco-friendly by facilitating the return and recycling of
used electrical and electronic appliances.
For optimal operation, the device must be used in a dry environment, and precautions should be
taken to prevent moisture damage. The provided power adapter and charger base operate within
a voltage range of 100-240V, 50-60Hz, ensuring compatibility in various settings.
The Coltene Spec 3 LED Curing Light boasts user-friendly controls, with options for power
adjustment, mode selection, and polymerization time settings. It also includes an auto-sleep
feature to conserve power when not in use. Furthermore, sterilization can be easily achieved using
FDA-cleared methods.
Multiple modes :
• Standard Mode: Ideal for most composite curing scenarios.
• 3K Mode: For rapid curing when time is an issue, like pedo or patients with gag reflex.
• Ortho Mode: Cures an entire full arch of brackets with 2 three second intervals per bracket.
High Intensity
• Standard Mode: 2mm Cure in 5 seconds
• 3K Mode: 2mm cure in 1 second

• 3 Distinct Power Modes
• Ergonomic lightweight design
• High intensity output for rapid polymerization
• Intuitive and simple controls for ease of use

Wavelength output : 430 nm – 490 nm
Power Supply :
• Input: 100V – 240V AC / 50 ~ 60 Hz
• Output: 6V DC, 2.5A
Dimensions :
• Component - S.P.E.C. 3® Curing Light
• Handpiece - 174.5 × 24.8 (mm)
• Power Adapter - 47 × 87 × 32 (mm),
• Charger Base - 136 × 86 × 60 (mm),
• AC Power Cord - 1.3m
• Intensity of irradiation Standard Mode: 1,600 mw / cm2 ± 10%
• Intensity of irradiation Mode 3K and Ortho: 3,000-3,500 mw / cm2

• 1 x LED curing light
• 1 x Charger Base
• 1 x Power Adapter
• 1 x Instruction Guide
• 1 x Eye Shield
• 1 x Composite curing test block
