Dentsply X-Smart Plus Endodontic Endo Motor

Dentsply X-Smart Plus Endodontic Endo Motor is the endodontic motor of choice for general
dental practitioners performing root canal treatments with the reciprocating, single File technique
or traditional continuous rotation File systems. It enables the practitioner to fully focus on the
patient and the treatment due to its simplicity of use, as well as the excellent visibility and access
with the miniature contra-angle attachment.

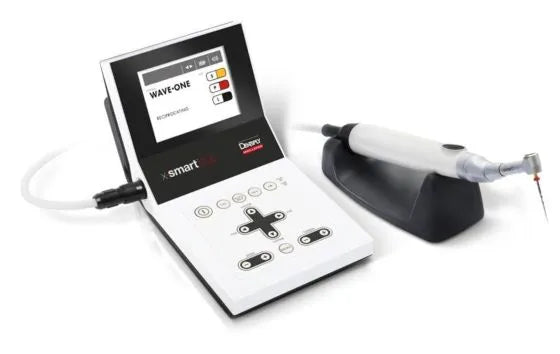

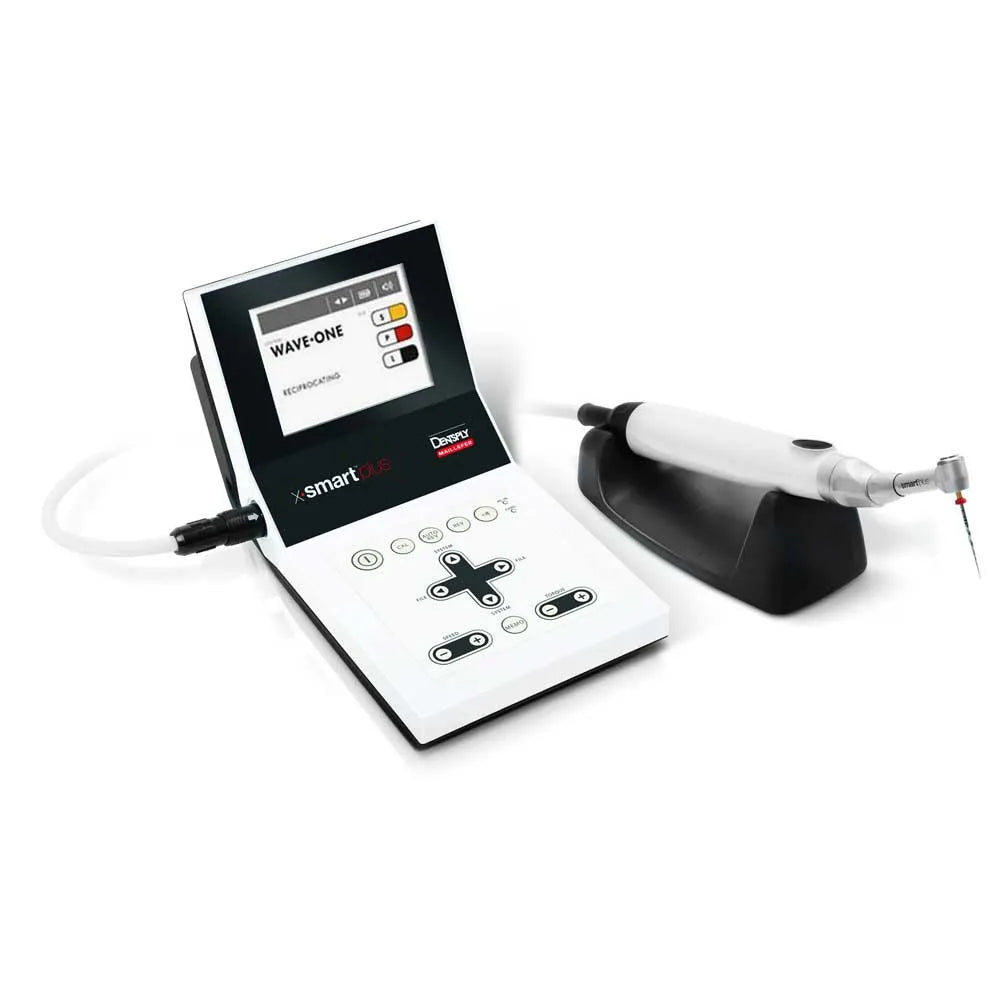

The X-Smart Plus micromotor is a simple and easy to use unit designed for GDPs carrying out
rotary endodontics. It has a lightweight handpiece with a small head. The unit is compact and
portable, operated without a foot pedal and can be battery operated. It has reciprocation for
WaveOne and torque control and auto-reverse modes for continuous rotation instruments. X
Smart Plus is the endo motor of choice for General Dental Practitioners performing root canal
treatments with the reciprocating, single file technique or traditional continuous rotation file
systems. It enables the practitioner to fully focus on the patient and the treatment due to its
simplicity of use, as well as the excellent visibility and access with the miniature contra-angle
attachment.
Indications for use:
• The X-SMART® Plus endo motor is a medical device according to the Medical Device
Directive 93/42/EEC, designed for use by dentists for driving dental root canal instruments
in continuous rotation and in reciprocating movement.
• This device must only be used in hospital environments, clinics or dental offices by
qualified
dental personnel.
Contraindications:
• In cases where a patient has been fitted with an implanted heart pacemaker (or other
electrical equipment) and has been cautioned against the use of small electrical appliances
(such as electric shavers, hair dryers, etc.) it is recommended not to use the X-SMART Plus.
• X-SMART Plus should not be used for severely curved root canal preparation.
• Do not use X-SMART Plus for implant or any other dentist procedure outside endodontics.

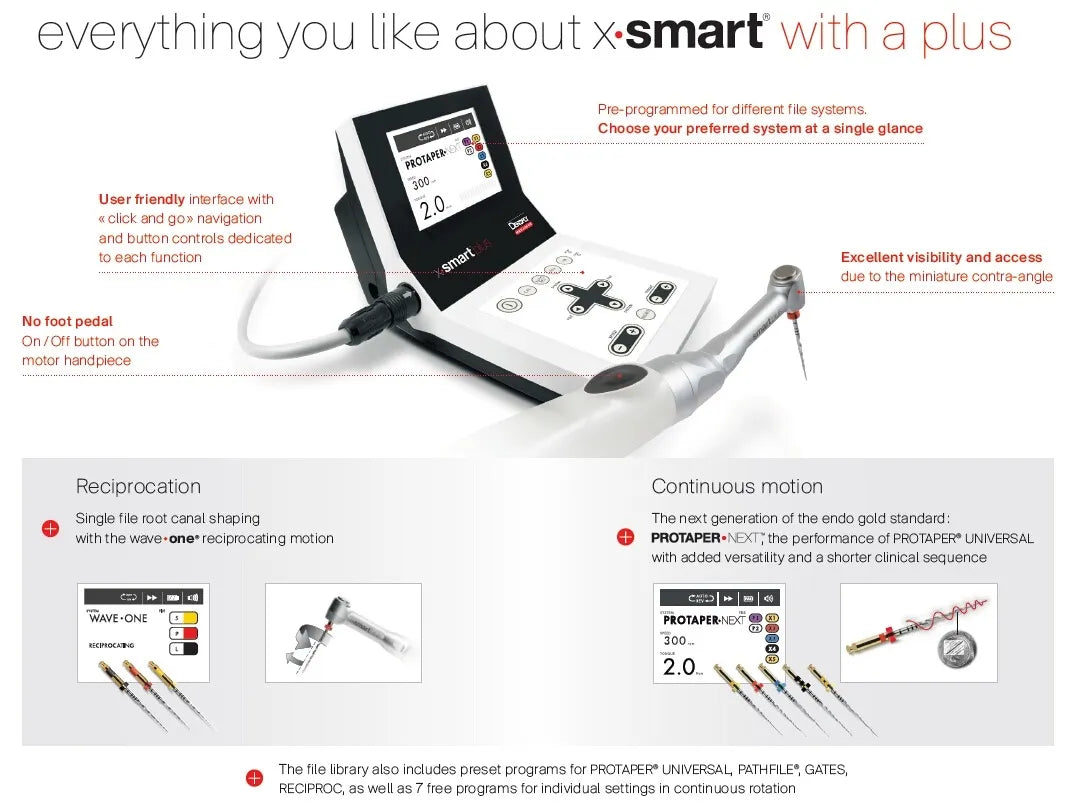

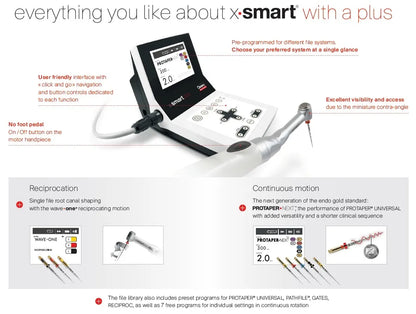

No foot pedal
• On / Off button on the motor handpiece
Excellent visibility & access
• Due to the miniature contra-angle head
Simple & improved user interface
• Large bright colour screen
• Dedicated button controls
• “Click and go” navigation
• New design with optimised screen & keyboard ergonomics
Single file root canal shaping:
• Reciprocating motion - discover the WAVEONE RECIPROCATING FILE SYSTEM
File selection at a single glance:
• ISO colour-coded file library
• Pre-programmed settings for WaveOne, Protaper® Universal, PROTAPER NEXT™ Pathfile™,
Gates and reciproc™
• 7 free programs for individual settings
The X-Smart Plus is operated by a rechargeable battery and provides in continuous rotation, a
speed range between 250 and 1,200 rpm and a torque range between 0.6 and 4.0Ncm. A warning
sound helps you keep track of the file stress and the auto reverse rotation at the torque limit
reduces the risk of file breakage.

• Miniature contra-angle head that can be adjusted in 6 positions
• On /Off button on the motor handpiece
• Reciprocating motion and continuous rotation
• Includes a file library with preset programs for Wave One®,PROTAPER® UNIVERSAL,
PATHFILE, GATES, RECIPROC – 7 free programs for individual settings in continuous rotation
• Auto reverse rotation at preset torque limit
• Torque range : 0.6 – 4.0 Ncm
• Speed range: 250 – 1’200 rpm
• Operates on a rechargeable battery and when connected to the mains
• Battery autonomy: approx. 2 hours continuous use
• Full recharge in approx. 5 hours
The device contains a file library with the following preset NiTi systems:
A. Continuous rotary systems
Gates
Proglider™
PathFile®
Protaper Next™
Protaper® Universal
Program (individual programs)
B. Reciprocating system
WaveOne® Gold
WaveOne®
RECIPROC®

• X-Smart Plus 6:1 contra angle
• X-Smart Plus AC Adapter
• X-Smart Plus Motor Handpiece
• 1 control unit
• X-Smart Plus Handpiece Stand
• X-Smart Battery
• X-Smart Spray Nozzle for F-Type contra-angle
• X-Smart Cleaning Adaptor
