Nsk Surgic AP2

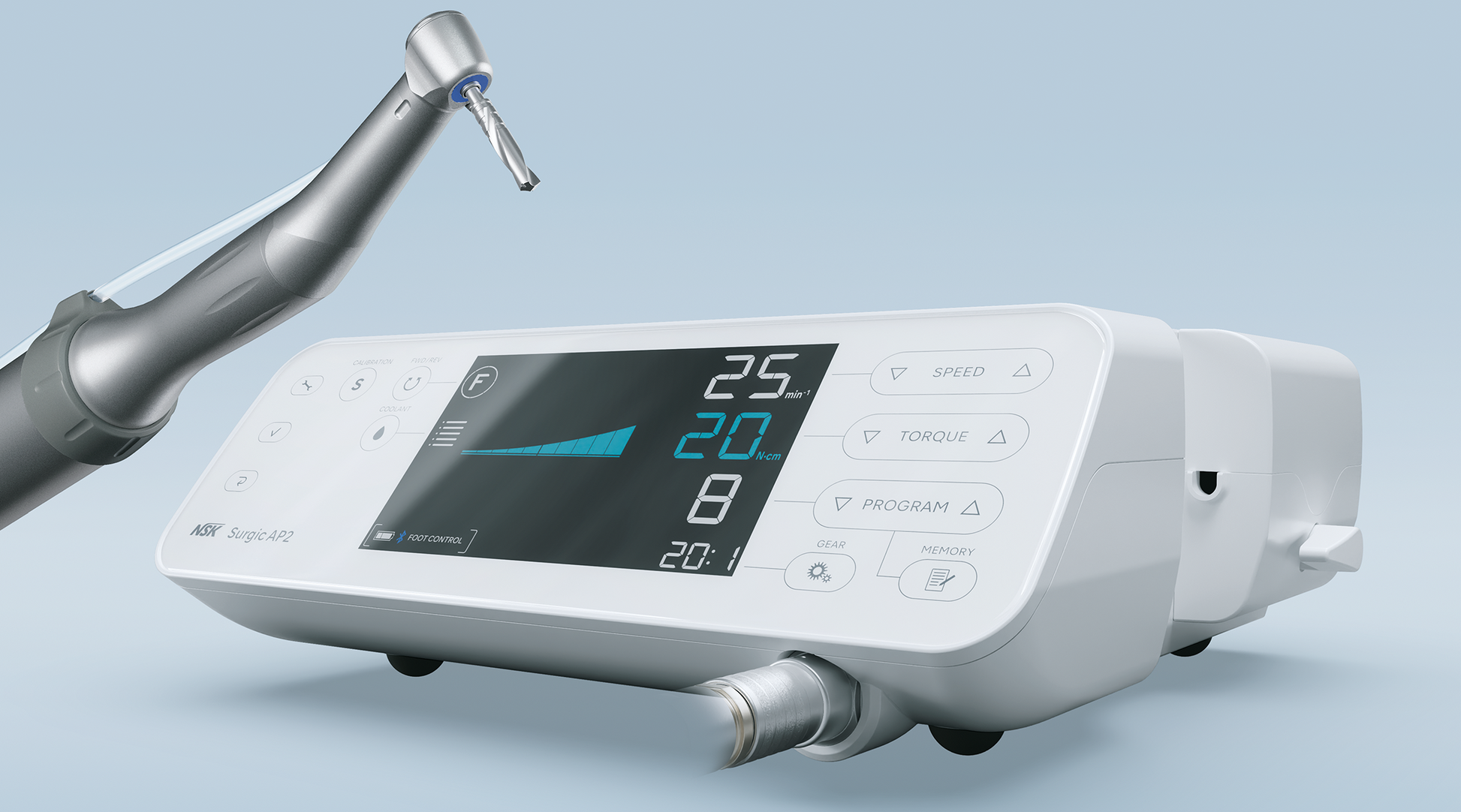

NSK Surgic AP-2 Implant Motor with S-Max SG20 Handpiece is an advanced surgical micromotor
system designed for optimal performance in dental implant procedures. It features the SG80MS
motor, which operates at speeds from 200 to 40,000 rpm, ensuring precise and efficient operation.
The system's ergonomic design includes a lightweight, compact handpiece, reducing practitioner

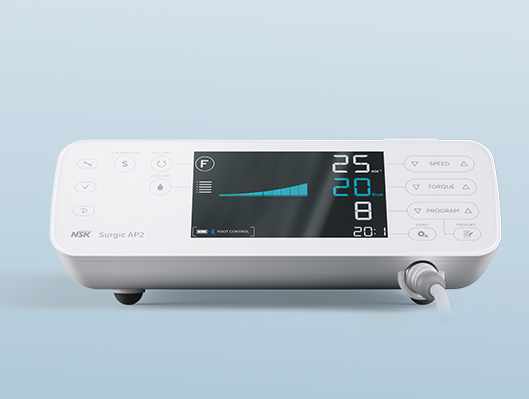

strain and improving accessibility within the oral cavity. The large, high-contrast LCD panel offers
excellent visibility and intuitive operation with adjustable brightness levels. The wireless foot
control (FC-84) utilizes Bluetooth connectivity, allowing for flexible and convenient pedal
positioning. This enhances control and focus during surgical procedures. The silent and smooth
irrigation pump provides consistent coolant flow, ensuring patient comfort and procedural
efficiency. Powered by an AC 230 V supply, the NSK Surgic AP-2 supports eight programmable
settings, allowing customization to meet specific surgical needs

The large, high-contrast LCD panel offers
excellent visibility and intuitive operation with adjustable brightness levels. The wireless foot
control (FC-84) utilizes Bluetooth connectivity, allowing for flexible and convenient pedal
positioning. This enhances control and focus during surgical procedures. The silent and smooth
irrigation pump provides consistent coolant flow, ensuring patient comfort and procedural
efficiency. Powered by an AC 230 V supply, the NSK Surgic AP-2 supports eight programmable
settings, allowing customization to meet specific surgical needs.

Micromotor (SG80MS):
Ÿ Rotation Speed Range: 200 - 40,000 rpm
Ÿ Input Voltage: DC 36 V
Ÿ Dimensions: Ø23.5 x L82.6 mm (without motor cord)
Ÿ Cord Length: 2 m
Ÿ Non-optic
Control Unit:
Ÿ Power Supply: AC 230 V, 50/60 Hz
Ÿ Maximum Pump Output: 75 mL/min
Ÿ Programs: 8
Ÿ Dimensions: W 245 x D 235 x H 90 mm
Foot Control (FC-84):
Ÿ Power Source: Three AA/Mignon/LR6 1.5 V alkaline batteries
Ÿ Dimensions: W 155 x D 155 x H 149 mm
Ÿ Wireless Connectivity: Bluetooth
Bluetooth Specifications:
Ÿ Frequency Band: 2.4 GHz ISM band (2.402 - 2.480 GHz)
Ÿ Transmitting Power: Class 3, 1 mW
Ÿ Modulation: GFSK
Ÿ Channels: 40 channel, 2 MHz spacing

1 x Ac P ower cord
Ÿ 1 x Control Unit
Ÿ 1 x Coolant Solution Hanger Post
Ÿ 1 x foot control
Ÿ 1 x Non-Optic Motor (With Motor Cord)
Ÿ 1 x Handpiece Stand
Ÿ 3 x AA Alkaline Battery
Ÿ 7 x Tube Holder
Ÿ 1 x Cleaning Wire
Ÿ 1 x Protection Plug
Ÿ 2 x O-Ring (Protection Plug)
Ÿ 2 x O-Ring (Motor)
Ÿ 1 x Non-Optic Handpiece
Ÿ 1 x E- Type Spray Nozzle
Ÿ 3 x Irrigation Tube
