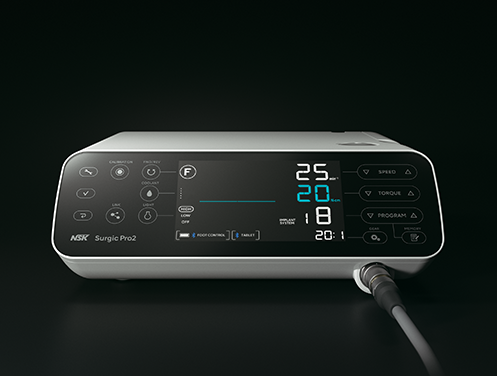

The NSK Surgic Pro2 is NSK's latest surgical motor system for implantology and oral surgery. Its micromotor is 25% shorter and 9% lighter than the previous generation for better balance, and the Bluetooth wireless foot control can also operate a connected VarioSurg3 ultrasonic unit, with Osseo 100+ stability readings shown on the same display.
Key features
- Shorter, lighter micromotor with improved balance
- Bluetooth wireless foot control
- Connects to Osseo 100+ and VarioSurg3 for one-pedal workflow
- Large back-lit LCD touch panel with 10 brightness levels, usable with gloves
- Free NSK app to save and export treatment data for traceability
- Available as non-optic or optic set
Specifications at a glance
- Torque: 5–80 Ncm
- Motor speed: 200–40,000 min⁻¹
- Programs: 64 (8 × 8)
- Max. pump output: 75 mL/min
- Power supply: AC 100–240 V, 50/60 Hz
- Dimensions: W 245 × D 235 × H 90 mm
Why buy the NSK Surgic Pro2 from Dental Supply Circle?
- Genuine branded product
- Free UK delivery on orders over £200
- Trade and bulk pricing for practices and groups – ask for a quote
More about the NSK Surgic Pro2
NSK Surgic Pro2
The Newest Surgical motor system from NSK
25% shorter, 9% lighter than current motor – Greatly improved balance.
Wireless Foot Control. Link by Bluetooth
WIRELESS CONNECTIVITY
Rather than being just a surgical micromotor, the Surgic Pro2 is now a central interface for other
primary surgical applications. For example, the Osseo 100+measures implant stability and
osseointegration to aid decisions about when to load the implant. Along with the VarioSurg3
ultrasonic surgical unit, the Osseo 100+ can be connected to the Surgic Pro2 via Bluetooth.
This allows the VarioSurg3 to be operated by the same wireless foot control with the values
measured by the Osseo 100+ simultaneously shown on the Surgic Pro2 display. The one-foot control
makes it easy to switch between the Surgic Pro2 and VarioSurg3 for improved flexibility and
workflow. Using the free NSK app means all patient and treatment-related data generated during
procedures can be visualised and saved to an external device. Data can then be displayed and
transferred as required or stored in the electronic patient file whilst also providing full traceability of
procedures to aid compliance.
- WIRELESS CONNECTIVITY
- Rather than being just a surgical micromotor, the Surgic Pro2 is now a central interface for other primary surgical applications. For example, the Osseo 100+measures implant stability and osseointegration to aid decisions about when to load the implant. Along with the VarioSurg3 ultrasonic surgical unit, the Osseo 100+ can be connected to the Surgic Pro2 via Bluetooth.
- This allows the VarioSurg3 to be operated by the same wireless foot control with the values measured by the Osseo 100+ simultaneously shown on the Surgic Pro2 display. The one-foot control makes it easy to switch between the Surgic Pro2 and VarioSurg3 for improved flexibility and workflow. Using the free NSK app means all patient and treatment-related data generated during procedures can be visualised and saved to an external device. Data can then be displayed and transferred as required or stored in the electronic patient file whilst also providing full traceability of procedures to aid compliance.
- LCD Touch Panel
- Visibility is guaranteed with the large, back-lit, high-contrast, LCD panel.
- The display can be adjusted in 10 brightness levels. The display's intuitive and easy to-understand icons allow for smooth operation.
- Easy-clean flat-screen display
- The sensitivity of the touch panel can be adjusted to reliably respond when surgical gloves and surgical barrier sheets are in use. Ultra-narrow bezel of the display makes cleaning easier. The new design takes into account the latest treatment and cross-infection control requirements.
- Silent and Smooth Irrigation Pump
- The irrigation pump provides consistent and steady flow operating quietly in the background. Irrigation tube set-up is simple and straightforward and the pump fits seamlessly in the compact and elegant design of Surgic Pro2.
- Foot Control Wireless
- Bluetooth connectivity allows selection of the optimal position without worrying about cable length. The foot controller is 400g lighter than the previous model (hangar included) making it easy to reposition. You can keep your focus on the treatment.
- The "Coolant Solution Flow Volume Button", "Program Button" and
- "Forward/Reverse Button" may be customized using the 3 installed buttons allowing the operator to choose their preferred mode of operation. The energy efficient power supply uses 3 AAA batteries, which last about 6 months.
- A flashing light indicates when the batteries are running low.
- Linked with the "VarioSurg 3" ultrasonic bone surgery system
- Surgic Pro2 can easily be linked with the NSK ultrasonic surgical system VariosSurg
- 3 by adding our bluetooth link module.
- With the NSK link stand the two units can be safely stacked to save space.
- One Foot Control
- You can easily switch between Surgic Pro2 and VarioSurg 3 for improved flexibility and workflow.
- Linked with iPads
- Installing a dedicated application and connecting an iPad to the control unit enables the real-time display of detailed procedural data, such as the rotation speed and the torque range.
- Procedural data can also be saved. Data can also be displayed and saved when connecting with Osseo 100+. Traceability data management of procedural details allows implant treatment to be tailored to individual patients.
- The non-optic version is equipped with the SG20 stainless steel contra-angle handpiece, and ready-to-use without any further configuration.
- Operability
- There are a range of upgrades to ensure even greater comfort during implant treatment.
- These specifications put the needs of professionals first.
- Safety
- Synonymous with Surgic Pro safer procedures are made possible
- With increased torque precision combined with the "Osseo integration Monitoring
- Device, Osseo 100+"
- Wireless Extensibility
- Wireless connection with multiple devices significantly broadens the scope of implant treatment
| For Non-optic | |
|---|---|
| Power Supply | AC 100-240 V 50/60 Hz |
| Max. Pump Output | 75 mL/min |
| Programs | ( 8 * 8 ) 64 Programs |
| Dimensions | W 245 x D 235 x H 90 mm |
| Torque | 5-80 Ncm |
| Motor Speed | 200-40,000 min-1 |
| Foot Control Functions | Coolant Solution Flow Volume Button, PRG(Program) Button, Forward/Reverse Button, Speed Control Peda |
| For Non-optic | |
| Power Supply | AC 100-240 V 50/60 Hz |
| Max. Pump Output | 75 mL/min |
| Programs | ( 8 * 8) 64 programs |
| Dimensions | W 245 x D 235 x H 90 mm |
| Torque | 5-80 Ncm |
| Motor Speed | 200-40,000 min-1 |
| Light Power (Optic Micromotor) | Over 32,000 LUX |
| Foot Control Functions | Coolant Solution Flow Volume Button, PRG(Program) Button, Forward/Reverse Button, Speed Control Pedal |
- For Non-Optic
- Surgic Pro 2 Non-optic with S-max SG20m Handpiece
- Control Unit
- SG 80M NonOptic Micromotor
- S-MAX SG20m Handpiece (20:1 Reduction)
- FOOT CONTROL WIRELESS
- Irrigation tube (pack of 3) and Other Accessories.
- For Optic
- Surgic Pro 2 Optic complete set with TiMax X SG20L Handpiece
- Control Unit
- SGL 80M Optic Micromotor
- TiMax X SG20L Handpiece (20:1 Reduction)
- FOOT CONTROL WIRELESS
- Irrigation tube (pack of 3) and Other Accessories
