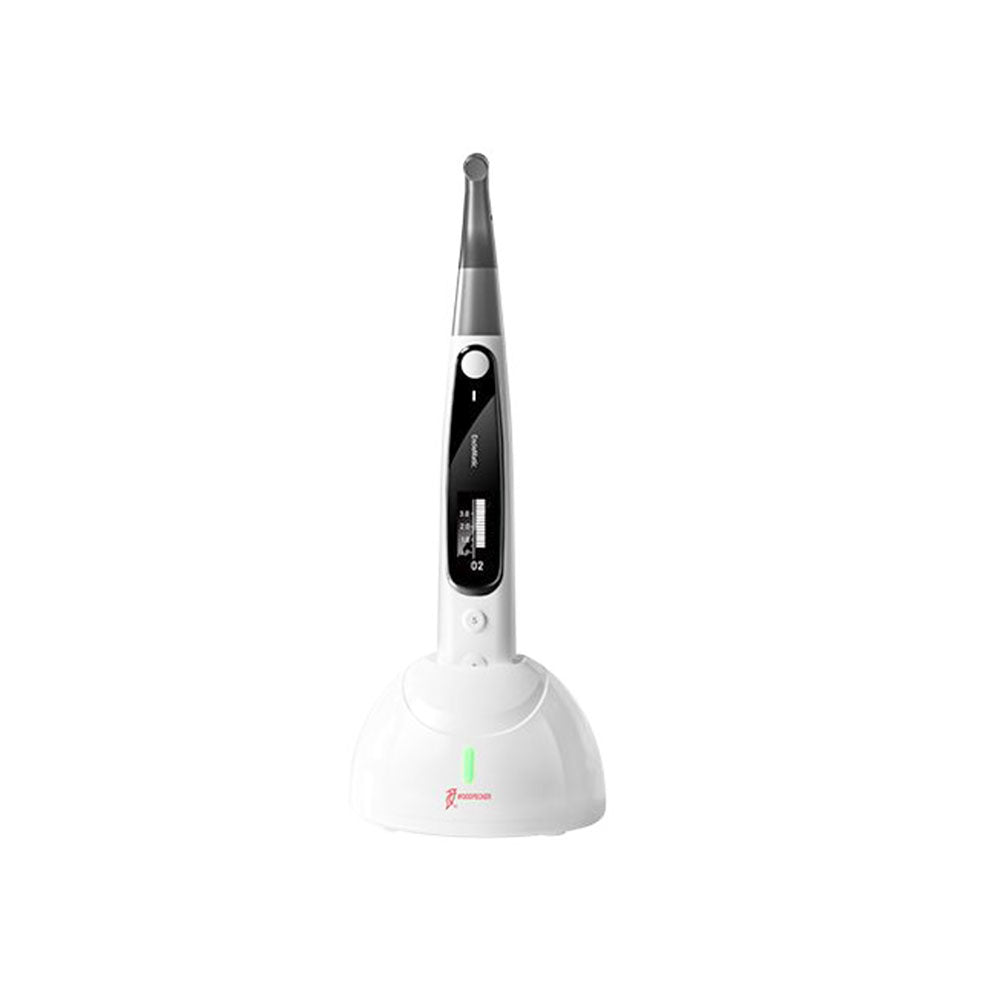

Woodpecker Endomatic Endo motor with Integrated Apex Locator

EndoMatic is mainly used in Endodontic treatment. It is a cordless
endo motor with root canal measurement capability. It can be used as
an endo motor for the preparation and enlargement of root canals, or a device for measuring canal length. It can be used to enlarge the canals while
monitoring the position of the file tip inside the canal. One of the notable features of the EndoMatic is its cordless and portable design, providing convenience and flexibility during procedures. The motor handpiece of the EndoMatic is equipped with a lithium battery with a capacity of 3.7V and 2000mAh. This high-capacity battery ensures long-lasting operation without the need for frequent recharging. To power the device, a power adapter is included in the package. The input range of the adapter is ~100V-240V, supporting worldwide usage. It operates at a frequency of 50Hz/60Hz with a maximum input current of 400mA. The output is DC5V/1A, providing a stable and reliable power supply to the device. The torque range of the EndoMatic is specified as 0.4Ncm to 5.0Ncm (4mNm to 50mNm). This wide range allows dental professionals to select the appropriate torque level for different treatment requirements, ensuring precise and controlled root canal preparation. The device is designed to operate within specific environmental parameters. The operating temperature should be maintained between 5°C and 40°C to ensure optimal performance. The relative humidity should fall within the range of 30% to 75%, while the atmospheric pressure should be between 70kPa and 106kPa. Adhering to these environmental conditions ensures the device functions reliably and consistently.

Cordless portable endo motor with combined length determination.
Surface insulation of plastic contra angle, the built-in electrode of
canal measurement, easy to use.
300 degrees rotation of contra-angle.
Adopt real-time feedback technology and dynamic torque control,
Effectively measurement, to use

Battery (Lithium battery in motor handpiece) : 3.7V /2000mAh
Power adapter: Input (100V-240V 50Hz/60Hz 400mA Max), Output (DC5V/1A)
Torque range: 0.4Ncm-5.0Ncm
Speed range: 100rpm~1000rpm
Environment temperature: +5℃ ~ +40℃
Relative humidity: 30% ~ 75%
Atmospheric pressure: 70kPa ~ 106kPa
Display Screens for 5 Operation Modes and Standby

CW Mode: The motor handpiece rotates forward 360º, clockwise direction. Used
CCW Mode: The motor handpiece rotates counterclockwise direction only. This mode is used to inject calcium hydroxide and other mendicant. When this mode is being used, double-beep sounds continuously
REC Mode: Reciprocating mode.
ATR Mode: Adaptive Torque Reverse function
EAL Mode: This mode is for canal measurement. The motor handpiece does not run in this mode.

1 x Motor handpiece
1 x Contra-angle
1 x Charging base
1 x Measuring wire
1 x Lip hook
1 x File clip
1 x Power adapter
1 x Instruction manual

Normal Delivery 4-10 Working Days
