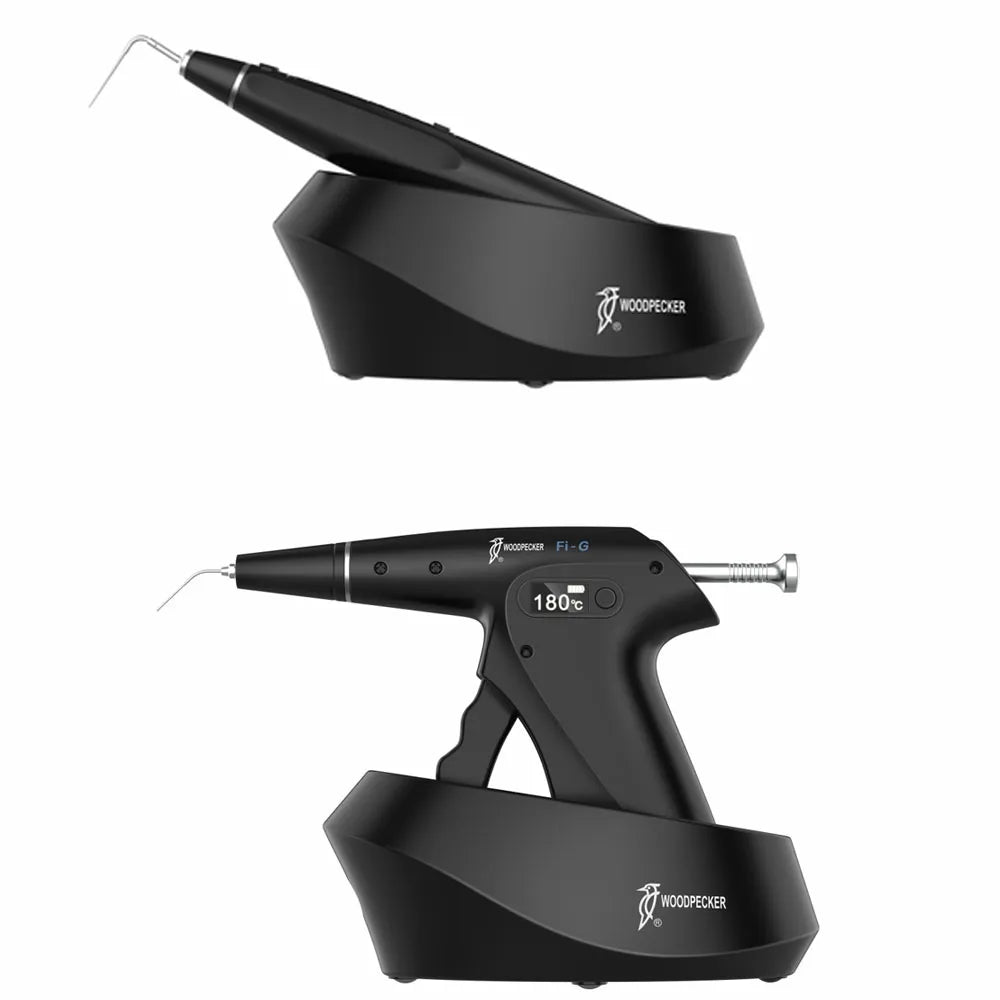

Woodpecker Obturation Gun & Pen System Combo

Woodpecker Obturation Pen System

Woodpecker Obturation Pen System is used to provide heat to the working tip, cut the gutta-percha point,& soften & pressurize the gutta-percha. Used for warm vertical compaction during root canal treatment so that softened gutta-percha can flow and fill the entire root canal system.

Woodpecker Obturation Gun

Fi- G adopts Wireless, Vertical types, and single button design, bringing easier obturation operation and a Rapid heating system.

It is a thermoplastic gun used for the injection of gutta-percha into the root canals.

INDICATION:

Heat up and soften gutta-percha, and fill the gutta-percha into the root
canal after preparation.

ADVANTAGES:

• Left and right display screens
• According to using habit, choose the correspondent screen
• Ergonomic design
• Comfortable holding feeling
• Japan Panasonic cell
• The battery is reliable and durable for operatio

Woodpecker Obturation Pen System
The display can be set to both right & left sides,to meet the needs of both left-hander & right-hander
Cordless design for heating
Sensitive temperature control,simple display,& convenient operation
If there is no operation for 10 minutes,the instruments will automatically shut down.
Advanced Temperature Control System
Heat up to preset temperature within 0.5s, Automatic timeout protection ensures safety.

4 Preset Temperature

150°C
180°C
200°C
230°C
Pen Handpiece

Comfortable holding feeling, Easy to control during operation
Woodpecker Obturation Gun
Adopt a wireless ergonomic design That makes it easy for use, clean, and store.
Four preset temperatures, accurately control the filling quantity.
The needle processed by special technique is durable it can be rotated 360°Which makes it easy to reach the desired part and get the fastest and most suitable effect
Adopt single button control, enabling easier operation
Safe protection system; ten minutes after the operation the device will automatically power off.
4 Preset Temperature

150°C

180°C

200°C

230°C

Woodpecker Obturation Pen System

Model of Tips

Model Tip Size(mm) Taper
WP4004 0.40 0.04
WP4504 0.45 0.04
WP5506 0.55 0.06
WP5508 0.55 0.08
Basic Data

Battery

3.7V
Power Input AC100V-240V
Dimensions of the Box
253x225x85mm
Woodpecker Obturation Gun
Classification Class Ⅱ(AC/DC power adapter)
Available temperatures 150℃→180℃→200℃→230℃
Time consumption for charging About 2.5h(3 hours are needed for the first charging
Power Input AC100V-240V 50/60Hz 500~800mA
Power Output DC15V/1.6A
Battery capacity(Chargeable battery) 2000mAh
Size 31x152x114mm
Storage temperature 20℃ ~ +55℃

Woodpecker Obturation Pen System

1 x Main unit
1 x Charging stand
1 x Power adapter
1 x WP4004 tip (Taper 4%)
1 x WP4504 tip (Taper 4%)
1 x WP5506 tip (Taper 6%)
1 x WP5508 tip (Taper 8%)
4 x Heat insulation sleeve of tips
1 x Instruction manual
Woodpecker Obturation Gun

1 x Obturation Gun
1 x Power adapter with cable
1 x Gutta-percha injection needle 23G#24mm
1 x Gutta-percha injection needle 23G #28mm
2 x Gutta-percha injection needles 25G #24mm
2 x Heat insulation hood
1 x Heat insulation sleeve for injection needle
2 x Cleaning brush
1 x Pushing ram
1 x Wrench
Instruction Manual
