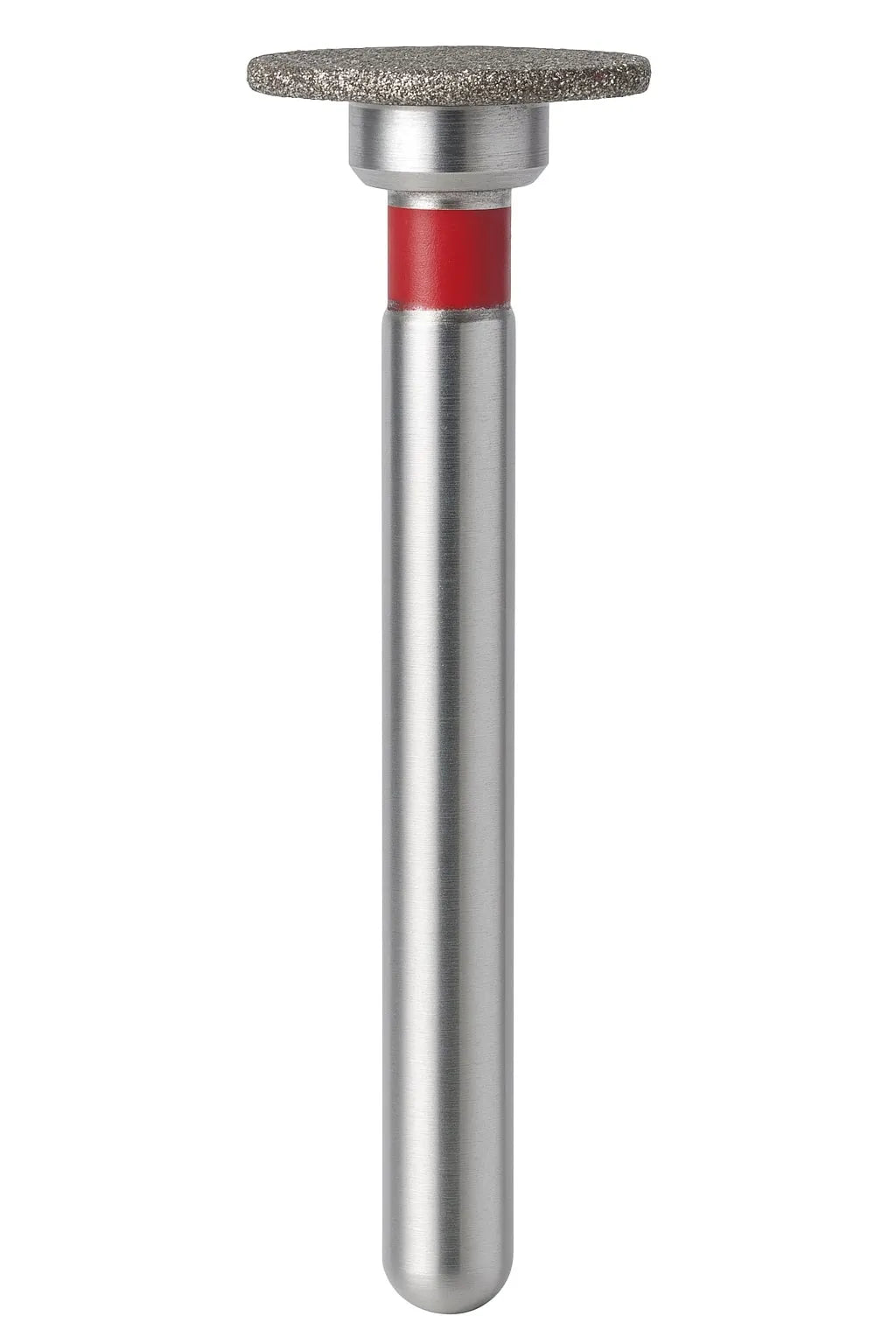

Mani Diamond Burs Pro Series

The Mani Diamond Bur Pro-5f is a high-quality rotary instrument engineered for precision finishing in restorative and prosthodontic procedures. Designed with a special shape profile and fine-grit (514, red-coded) diamond particles, it ensures controlled cutting with minimal vibration, delivering excellent surface smoothness. With an overall length of 19.1 mm, a working length of 0.7 mm, and a maximum diameter of 3.9 mm, this bur is optimized for accurate contouring and fine finishing of tooth structures and restorative materials. Its robust construction supports smooth performance at speeds up to 160,000 rpm, ensuring safety and durability in clinical use.

Primary Applications:

• Adjusting & Finishing Zirconia and Ceramic Restorations – Designed to work efficiently on high-strength materials without chipping.

• Crown & Bridge Preparation – Creating smooth margins and refining preparations for better prosthetic fitting.

• Contouring and Shaping – Used for precise shaping of restorations to enhance aesthetics and functionality.

• Finishing and Polishing – Some Procera burs help refine surfaces before final polishing.

• Chamfer & Shoulder Margin Preparation – Ideal for creating precise margins on tooth preparations for better crown adaptation.

Fine-grit (red) diamond coating for smooth cutting.

Optimized 0.7 mm working length for controlled adjustments.

Wide 3.9 mm diameter for efficient surface coverage.

High-quality diamond grit ensures durability and sharpness.

Operates safely at speeds up to 160,000 rpm.

Provides superior finishing with minimal tooth structure damage.

Autoclavable for repeated use and long service life.

Type: Diamond Rotary Bur
Model: Pro-5f
Grit Size / Color Coding: 514 (Red, Fine Grit)
ISO Code: 041-039
Overall Length: 19.1 mm
Working Length: 0.7 mm
Detail Max. Diameter: 3.9 mm
Max. Allowable Speed: 160,000 rpm

1 x Pack of 5 Burs
