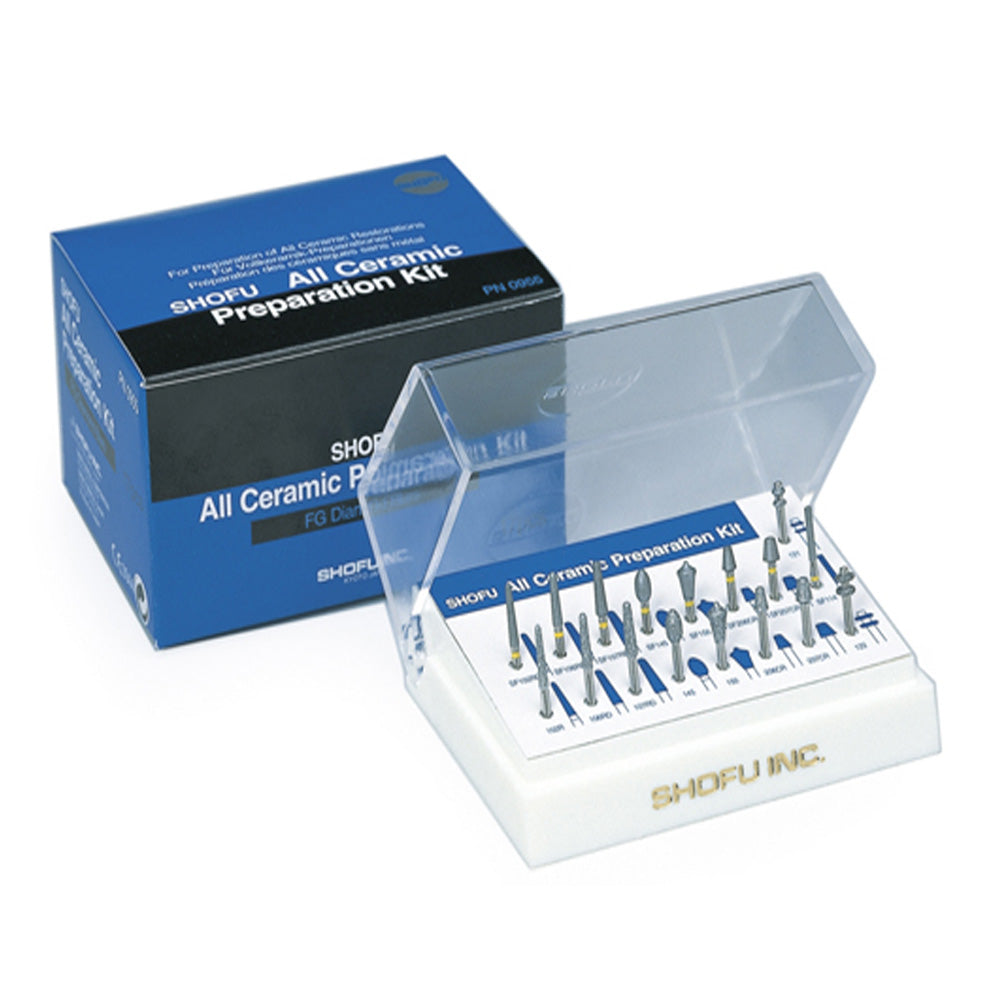

Shofu All Ceramic Preparation Kit PN0955

The All Ceramic Preparation kit is specially created with an exclusive range of diamond burs for simple, efficient and accurate tooth preparation for full-ceramic, inlay/onlay and veneer restorations.

Features

• A careful selection of a total of 17 burs for speedy, simple and accurate all-ceramic preparation

work.

• 2 specially designed depth cutting burs to achieve precise depth orientation grooves for

accurate labial reduction during crown and veneer preparation.

• Sequenced grades of 2 grits.

Regular:(no marking on the shank)

Super-Fine:(yellow band on the shan

work.

• 2 specially designed depth cutting burs to achieve precise depth orientation grooves for

accurate labial reduction during crown and veneer preparation.

• Sequenced grades of 2 grits.

Regular:(no marking on the shank)

Super-Fine:(yellow band on the shank)

• All 17 burs are placed in a hygienically organized bur stand for convenient storage and easy

replacement.

• The special selection of 17 burs are created for clinical application in:

896,897: Specially designed burs for the preparation of depth orientation grooves.

896- 0.5mm depth for all ceramic laminate veneer preparation

897- 1.0mm depth for anterior tooth, all ceramic crown preparation

0836, 836V: Designed to prepare the anterior tooth, buccal surface of upper and lower

pre-molar or cervical area on the lingual surface. Use 1/2 - 2/3 of the diameter

Head length 9mm, diameter 1.3mm with tapered angle of 4°

0839, 839V: Designed to prepare buccal and lingual surfaces of upper and lower molar teeth.

For cervical area use 2/3 of the diameter

Head length 9mm, diameter 1.5mm with tapered angle of 20°

0893, 893V: Designed for cutting upper / lower anterior tooth on lingual surface (to maintain

occlusal space) and lower pre-molar on occlusal area.

Head length 4.9mm

0899, 899V: Designed to reduce an upper pre-molar and the occlusal surface of an upper/ lower

molar to maintain the occlusal space.

Tapered 20° angle

808V: Use this diamond bur after the preparation is finished to eliminate the free enamel in

the cervical area. Use a lower speed to avoid chipping the enamel.

Head length 8mm

0833, 833V: Designed to slice cut at the interproximal surface or box preparation at the

interproximal surface of class II inlay restoration. Use ½ the diameter, except when

preparing the lingual cervical area of a lower anterior tooth use 2/3 the diameter

Head length 9mm, diameter 1.1mm (at the top of working part) with tapered 4° angle

0825, 825V,

0826, 826V: Designed to prepare the occlusal box-form of an upper / lower pre-molar and molar

0826, 826V: Used for occlusal box-form for upper and lower molar

Head length 3.5mm, diameter 1.5mm and 2mm with tapered 20° angle

• Maximum recommended speed for the burs:

Less than 300,000 rpm: 0825, 0833, 0836, 0839, 0896, 808V, 825V, 833V, 825V, 893V

Less than 160,000 rpm: 0826, 0893, 826V, 893V

Less than 120,000 rpm: 0897, 0899, 899V

Recommended load: 0-0.8 N

Pack contents: Set

Contents: Robot Points ? 1 each: 808V-1, 0825-1, 825V-1, 0826-1, 826V-1, 0833-1, 833V-1, 0836-1, 836V-1, 0839-1, 839V-1, 0893-1, 893V-1, 0896-1, 0897-1, 0899-1, 899V-1

Normal Delivery 4-10 Working Days
