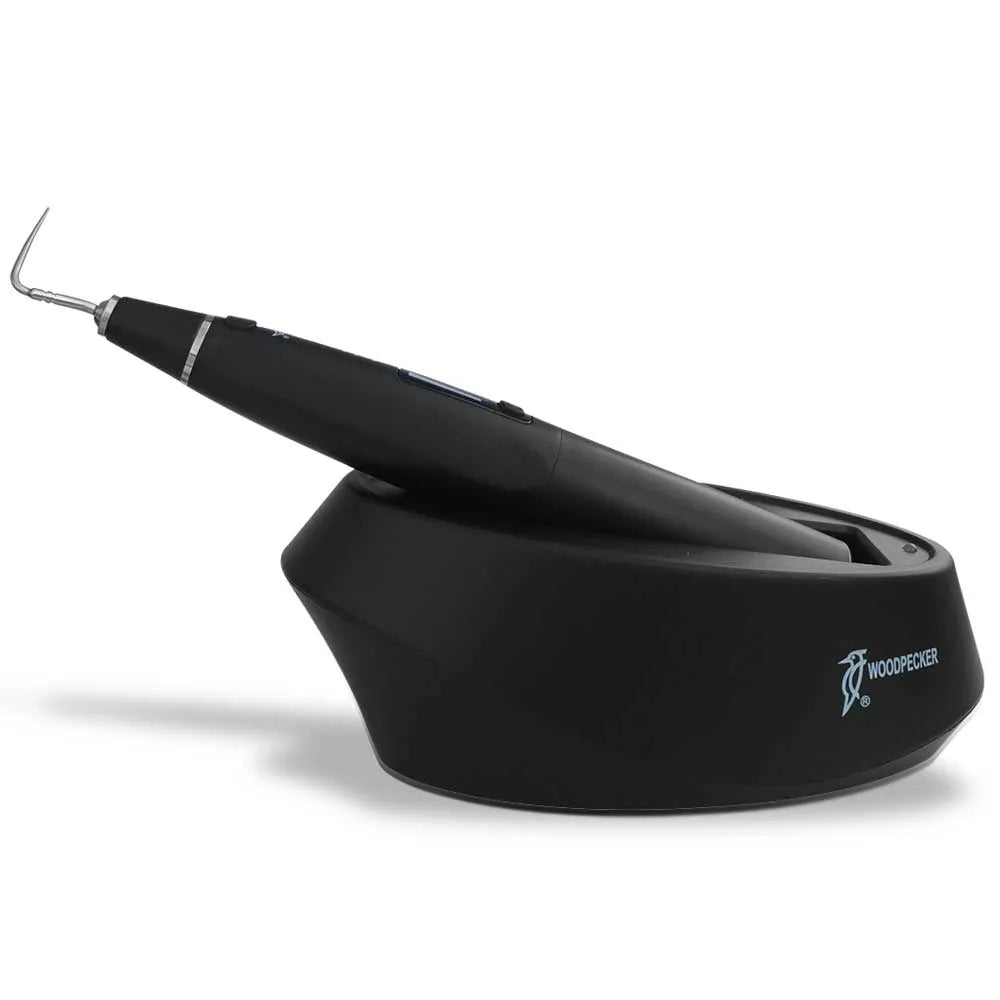

Woodpecker Obturation Pen System

The Woodpecker Obturation Pen System is a versatile tool used in endodontic procedures to facilitate efficient root canal obturation. It is designed to aid in the placement and sealing of gutta-percha, a thermoplastic material commonly used in root canal treatments. With its ergonomic design and user-friendly features, this system offers enhanced precision and control during the obturation process. The Woodpecker Obturation Pen System operates through a combination of heating, cutting, and packing mechanisms to ensure optimal root canal obturation. It begins by preparing the gutta-percha points, which are selected based on the requirements of the root canal being treated. The system allows for the customization of gutta-percha points, ensuring a precise fit within the canal.

The system features a heating mechanism that softens the gutta-percha, making it pliable and easier to manipulate during placement. The temperature settings can be adjusted to meet the specific needs of the procedure. Once softened, the gutta-percha is carefully placed within the root canal, ensuring complete coverage and sealing of the canal walls.

The Woodpecker Obturation Pen System also incorporates a cutting mechanism to trim excess gutta-percha, achieving a neat and precise obturation. It assists in removing any obstructions or irregularities within the canal, ensuring a smooth and uniform seal. Additionally, the packing mechanism aids in compacting the gutta-percha, ensuring a tight seal and filling any gaps or voids.

Precise and efficient heating for optimal root canal filling.
Optional preset temperatures for customizable heating.
Intuitive interface with user-friendly controls.
Portable and rechargeable design for convenience.
Dedicated charging base for secure storage and charging.
Safety classification and durable construction.
Versatile application for various endodontic procedures.

Size:

Heating and Packing Instrument: 23.8mm × 158.3mm × 23.8mm
Charging base: 75.5mm × 149.7mm × 62.6mm
Weight:

Heating and Packing Instrument: 80g
Charging base: 195g
Power adapter: 167g
Technical Parameters:

Classification: Class Ⅱ (AC/DC power adapter)
Optional preset temperatures: 150℃ → 180℃ → 200℃ → 230℃
Time consumption for charging: About 2.5 hours
Power supply:
Input: AC100V-240V, 50/60Hz, 800mA
Output: DC15V/1.6A
Battery capacity: Chargeable battery with 2000mAh capacity

1 x Main unit
1 x Charging stand
1 x Power adapter
1 x WP4004 tip (Taper 4%)
1 x WP4504 tip (Taper 4%)
1 x WP5506 tip (Taper 6%)
1 x WP5508 tip (Taper 8%)
4 x Heat insulation sleeve of tips
1 x Instruction manual
